Flagship System

X-Y Friction Free Rail / GS Monorail System

The overhead rail platform that carries a hoist and trolley across a full bay in both X and Y directions — the backbone behind our jib and EOT crane installations.

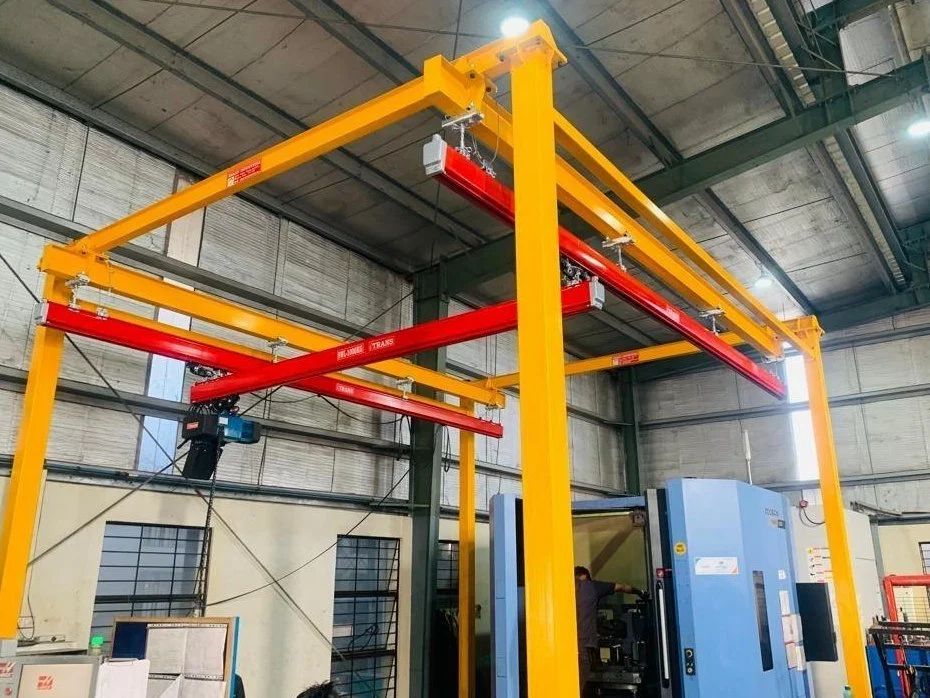

GS Tool & Components floor-mounted X-Y rail gantry system installed next to a CNC machining center

How It's Built

The system runs on a run rail and bridge rail pair, connected by a hanger kit to the building structure or a floor-mounted frame. A trolley assembly rides the bridge rail (X-axis) while the bridge itself travels the run rail (Y-axis), carrying the hoist to any point in the bay. An air line kit and safety cable keep the pendant and hoist power supply moving with the trolley.

  • ●
    Run Rail & Bridge RailAluminum or steel profile, sized to load and span
  • ●
    Trolley AssemblyManual or motorized electric trolley option
  • ●
    Hanger Kit & Safety CableFixes the rail to overhead structure with a secondary safety line
  • ●
    End Truck & End StopDefines and protects the travel limits on each axis
ModelMaterialWeight
RA A0100Aluminum1.54 kg/m
RA A0001Aluminum5.57 kg/m
RA A0002Aluminum11.11 kg/m
RA S0001Steel6.43 kg/m
RA S0002Steel14.13 kg/m
RA S0003Steel15.89 kg/m
SWL rated per installation · 500 Kg per rail shown in our recent projects
Enquire on WhatsApp

10+ years manufacturing in Sahibabad, Ghaziabad — rail, structural work and finishing done in-house.

Where It's Installed

The same rail platform adapts to different mounting conditions.

Aluminum X-Y rail system on a floor-mounted structure

Floor-Mounted Structure

Aluminum X-Y rail on a floor-mounted frame — common for packing areas and light assembly stations.

Steel X-Y rail system suspended from an overhanging RCC structure

Overhanging RCC Structure

Steel X-Y rail suspended directly from an overhanging RCC structure, no floor footprint needed.

X-Y rail system on a pillar-mounted structure

Pillar-Mounted Structure

Rail mounted on dedicated pillars where the building structure isn't suited to direct suspension.

Aluminum X-Y rail system for loading and unloading on CNC machines

CNC Loading / Unloading

Aluminum X-Y rail positioned for pick-and-place loading and unloading directly at CNC machines.

From Our Installations

Close-up of GS Tool & Components branded steel rail beams rated SWL 500 Kg
Rail Beam Detail — SWL 500 Kg per RailSteel run rail and bridge rail assembly, GS Tool & Components branded.
X-Y rail system for a 1 ton single girder installation
1-Ton Single Girder SetupX-Y rail sized and mounted for a single girder, 1-ton capacity installation.
